Trapezoidal steel wire for spring washer

Application
This product is suitable for the manufacture of standard spring gasket trapezoidal steel wire.

Classification and code name
Cold drawing :L Annealing: T Flat bottom: Pd Arc bottom: Hd

b - nominal height; H-trapezoid height; L-trapezoidal bottom length; D - trapezoid diagonal; r - radius of fillet; A-trapezoidal Angle

Note: The shape of the section should be indicated in the contract

Mechanical properties

Delivery state	Mechanical properties (Grade 65mn)
Delivery state	Tensile strength, Kgf/(N/mm)	The Brinell hardness was HB
Annealing	60~80（588~784）	157~217
Cold draw	85~110（833~1078）	241~310

Quality of surface

The surface of the wire shall be smooth, without cracks, corrosion, folding and oxide scale, and local scratches and individual pits shall not exceed half of the allowable deviation of size H.

Oxidized color is allowed on the surface of annealed steel wire.

Layer of decarbonization

The depth of the total decarbonization layer (ferrite + transition layer) on the steel wire side is not greater than 2.0%H, and the decarbonization layer is not examined on the corner

Form of delivery

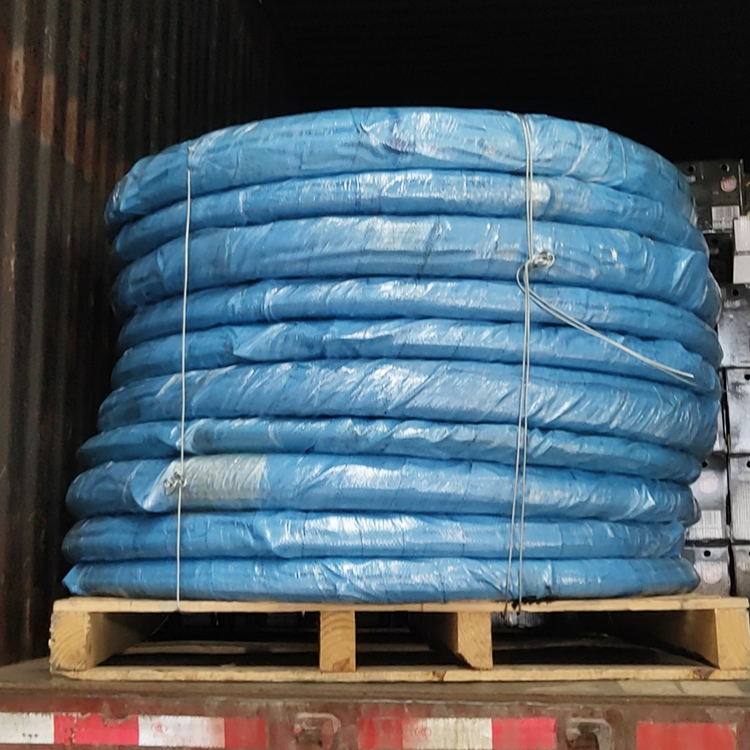

Delivery on a coil basis

Dimensions, dimensions and tolerances (Steel wire for standard gasket)

Specifications	Steel Wire Size
	b,mm	H,mm		L,mm		D,mm		a,°		r,mm
	b,mm	Size	Tolerance	Size	Tolerance	Maximum size	Minimum size	Angle	Tolerance	r,mm
TD1.0	1	1.01	-0.1	1.05	-0.1	1.39	1.31	5	-0.5	0.25b
TD1.2	1.2	1.21	-0.1	1.25	-0.1	1.67	1.59	5	-0.5	0.25b
TD1.6	1.6	1.62	-0.1	1.65	-0.1	2.21	2.12	5	-0.5	0.25b
TD2.0	2	2.02	-0.1	2.1	-0.1	2.8	2.71	4.5	-0.5	0.25b
TD2.5	2.5	2.52	-0.1	2.6	-0.1	3.48	3.38	4.5	-0.5	0.25b
TD3.0	3	3.03	-0.1	3.1	-0.1	4.17	4.07	4.5.	-0.5	0.20b
TD3.5	3.5	3.53	-0.12	3.65	-0.12	4.88	4.77	4.5	-0.5	0.20b
TD4.0	4	4.03	-0.12	4.15	-0.12	5.57	5.46	4.5	-0.5	0.20b
TD4.5	4.5	4.54	-0.12	4.7	-0.12	6.31	6.19	4	-0.5	0.20b
TD5.0	5	5.04	-0.12	5.2	-0.12.	7	6.88	4	-0.5	0.20b
TD6.0	6	6.05	-0.12	6.3	-0.12	8.44	8.3	4	-0.5	0.20b
TD6.5	6.5	6.55	-0.15	6.8	-0.15	9.12	8.98	4	-0.5	0.20b
TD7.0	7	7.06	-0.15	7.4	-0.15	9.88	9.73	4	-0.5	0.18b
TD8.0	8	8.06	-0.15	8.4	-0.15	11.25	11.1	4	-0.5	0.18b
TD9.0	9	9.07	-0.15	9.5	-0.15	12.69	12.53	4	-0.5	0.18b

Steel wire for light gasket
